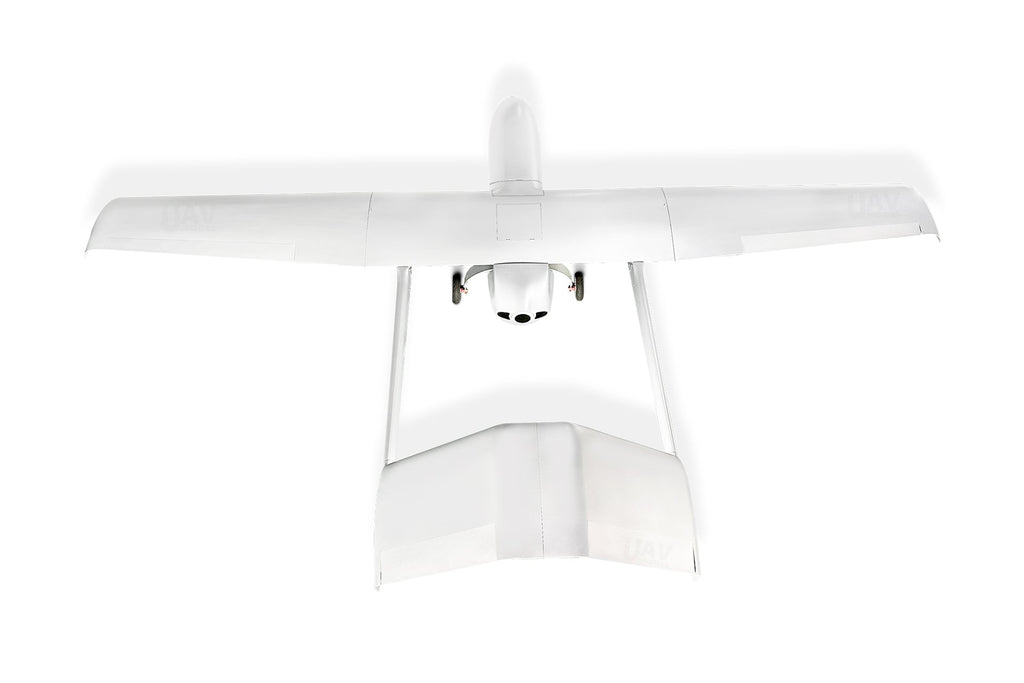

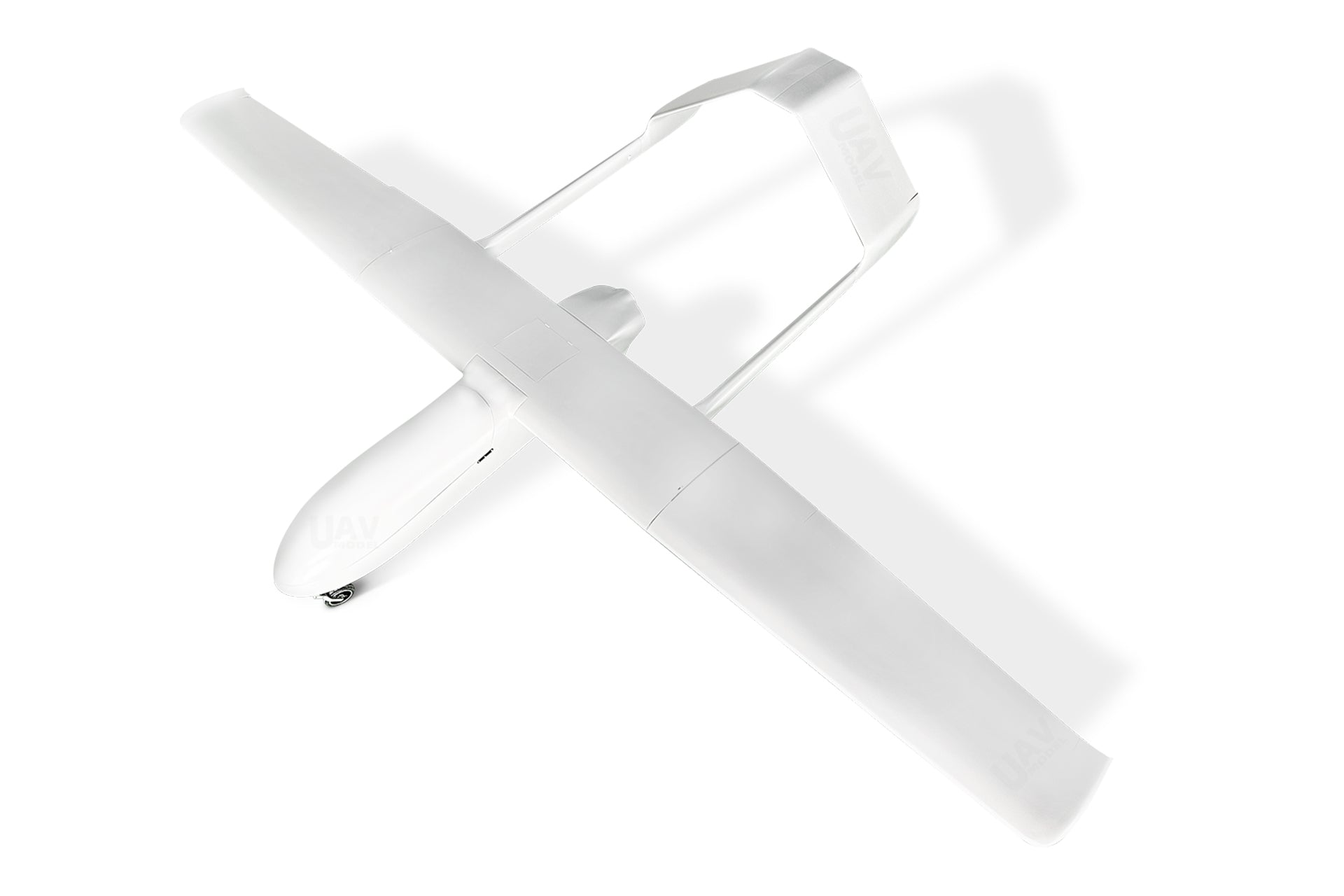

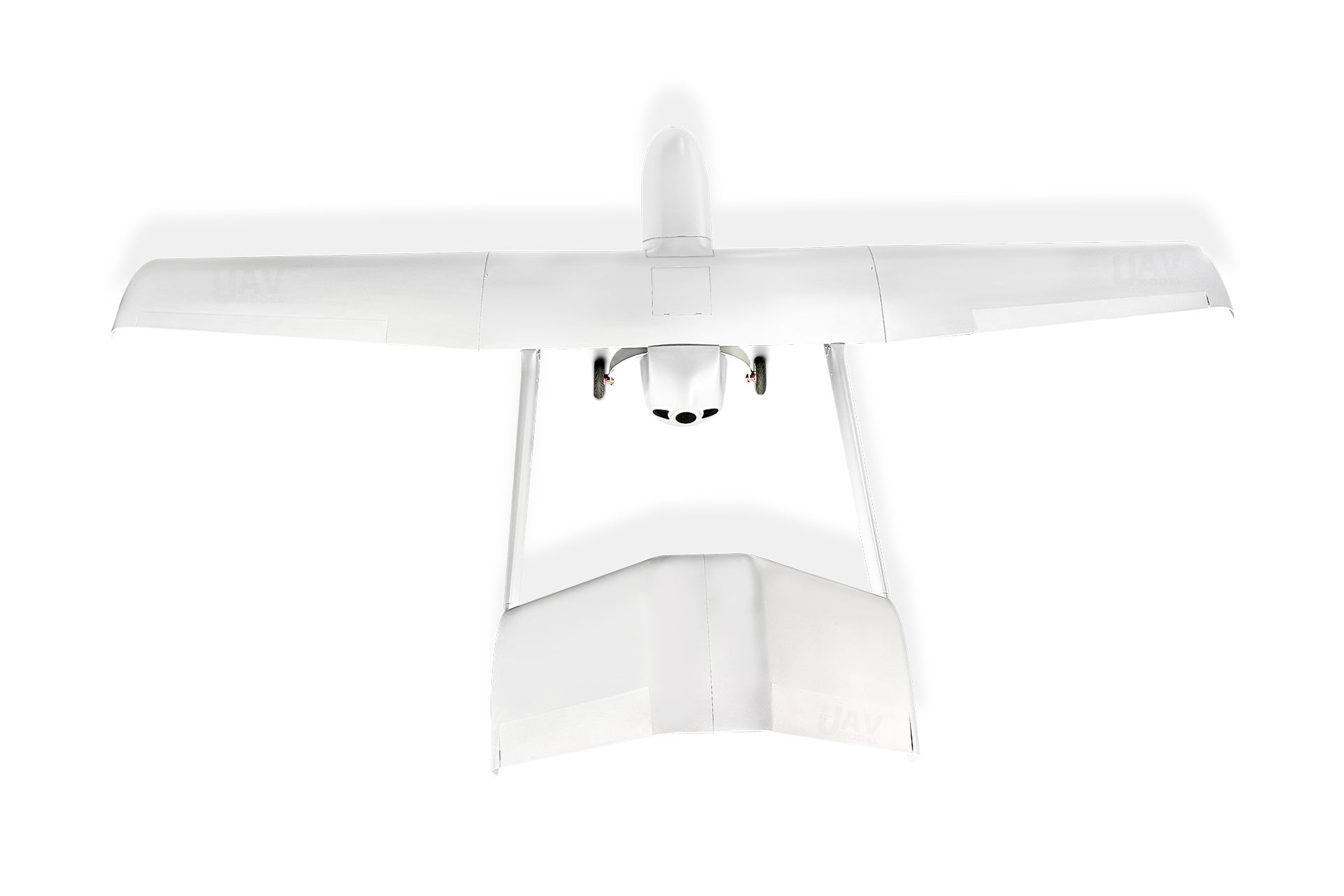

Skyeye S500 is an advanced fixed-wing UAV platform featuring a 5000mm wingspan that made of full carbon fiber. It integrates several key enhancements for superior performance.
A significant upgrade is the integration of disc brake system on the landing wheels, offering improved safety during runway landings. Reinforced internal ribs and structures contribute to increased durability and longevity. For easier transportation and international shipping, each boom is now divided into two parts for added convenience.
This Skyeye 5000 fixed-wing UAV platform comes equipped with a robust Kevlar fuel tank, offering a generous 28-liter capacity. With an estimated maximum flight time of over 7 hours, it significantly surpasses previous models. The Skyeye 5000 accommodates a maximum takeoff weight of up to 90kg and can carry a payload of approximately 25kg, making it ideal for long-range transport missions.

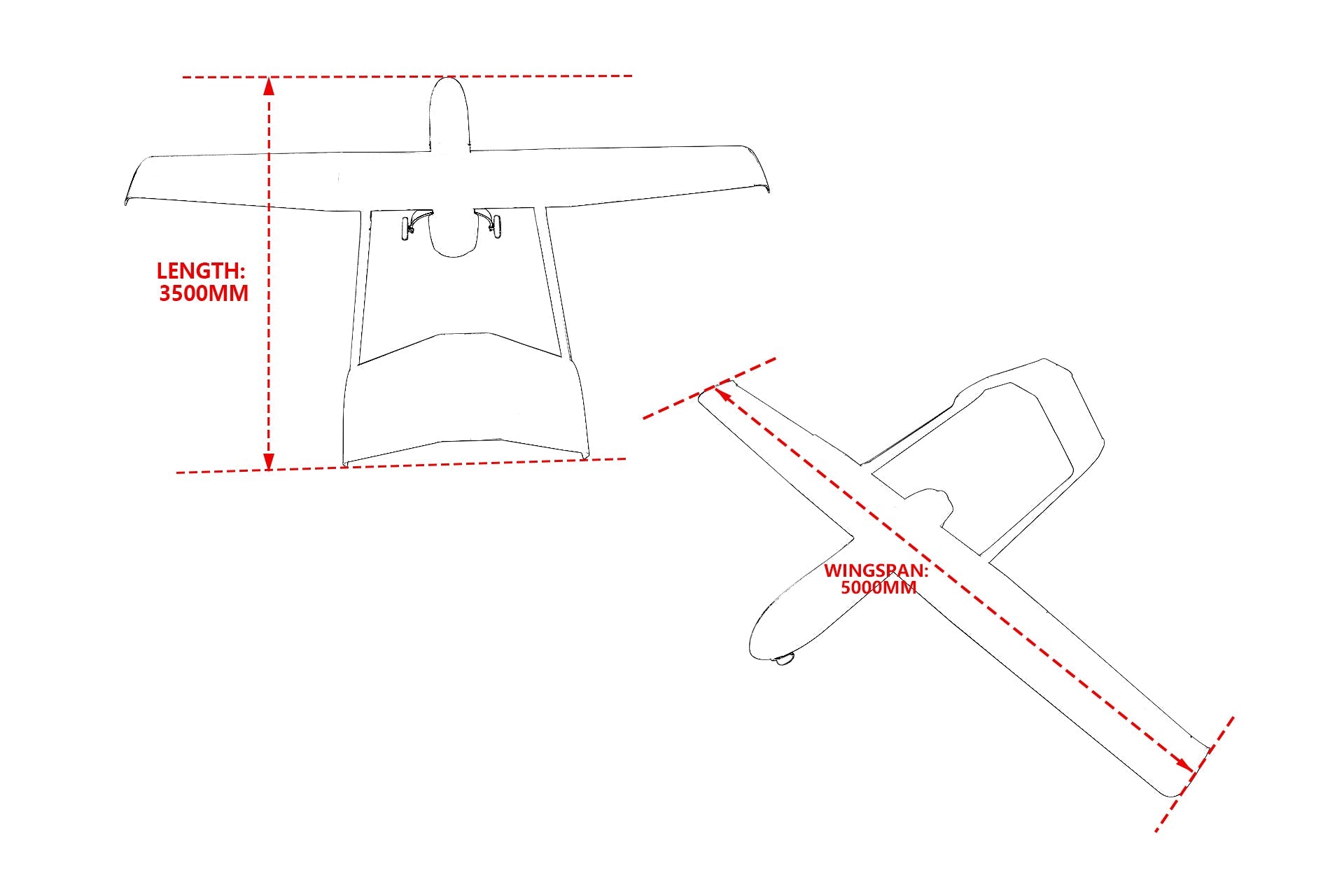

| PARAMETER | wingspan | 5000mm |
| Length | 3500mm | |
| Maximum fuselage width | 375mm | |
| Wing area | 261.5 dm2 | |
| Equipment bay dimensions | 920mmx340mmx350mm | |
| Tank volume | 30L | |
| Weight and Payload | Empty weight | 33.64kg |
| Maximum take-off weight | 90KG | |
| payload | 25KG | |
| Flight Characteristics | Top speed | 150km/hr |
| Cruising speed | 120km/hr | |
| Stall speed | 55km/hr | |
| Take-off distance | 60M | |
| Landing distance | 85M | |
| Maximum flight time | >10H | |
| Packaging Information | Wing section | 190*50*80cm |
| Fuselage section | 190*50*48cm |
| SKYEYE S500 2024 5000MM UAV Drones Platform | |||
| Name | Specification | KIT | PNP |
| Flying platform | S500 Outer wing | 2 | 2 |
| S500 Center wing | 1 | 1 | |
| S500 Main body | 1 | 1 | |
| S500 undercarriage | 1 | 1 | |
| S500 Plain tail | 1 | 1 | |
| S500 Stern stay | 2 | 2 | |
| S500 Front stay | 2 | 2 | |
| S500 hatchcover | 1 | 1 | |
| S500 Fuel tank | 1 | 1 | |
| S500 Engine hood | 1 | 1 | |
| Power system | DLE170 Engine | 1 | |
| Servo | 9 | ||
| 32*12 Propeller | 1 | ||
| Wire bale | 1 | ||
| Installation service | 1 | ||
Information Updated version:202501221223
If the product exceeds the maximum order weight of the system, the logistics cost can consult our customer service staff.
Note:
Production lead time: 7-15 working days (ask customer service about production schedule before ordering)
The shipping time is expected to be another 7~14 days
Prices and freight are for reference only, no stock, orders need to wait for production time.
