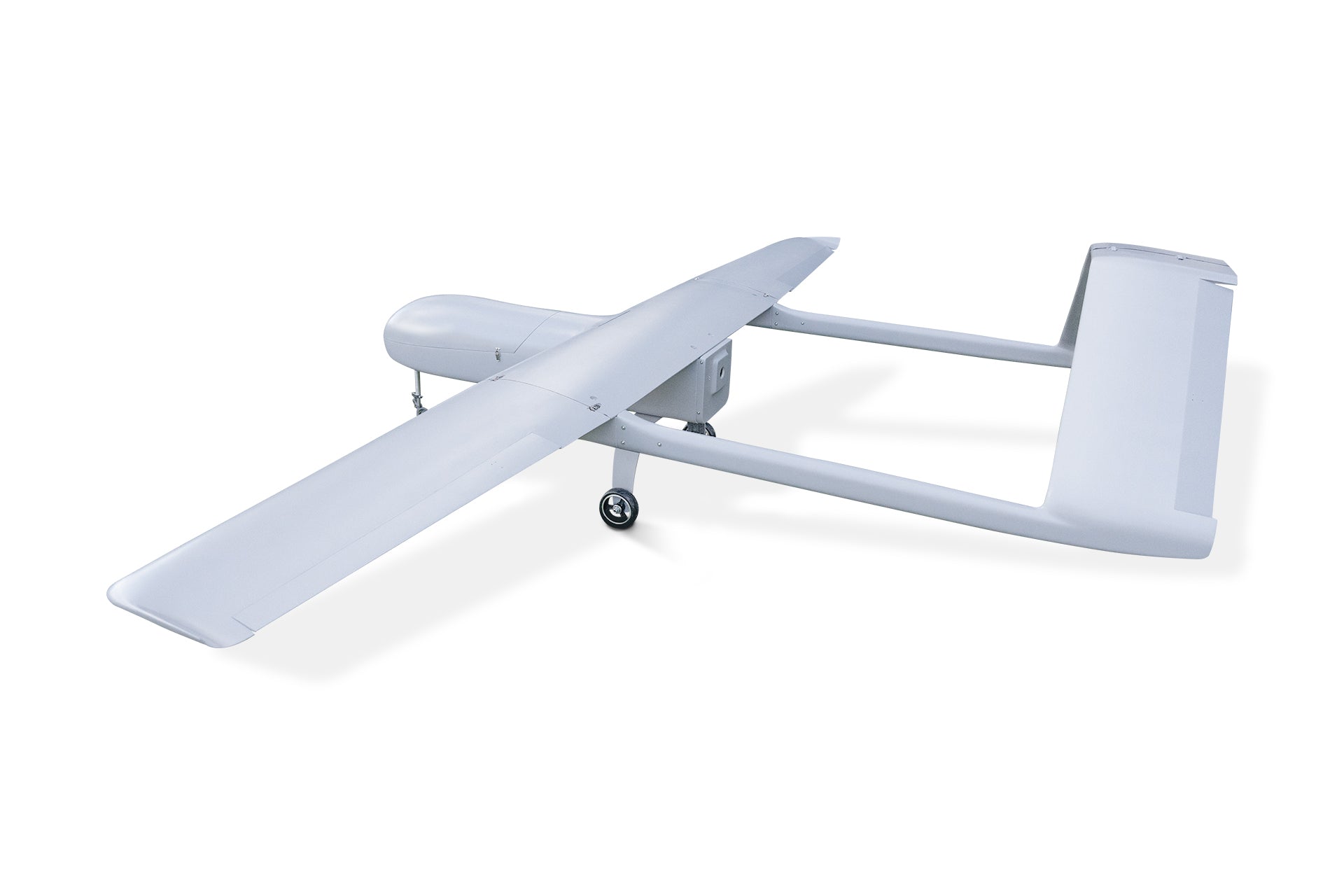

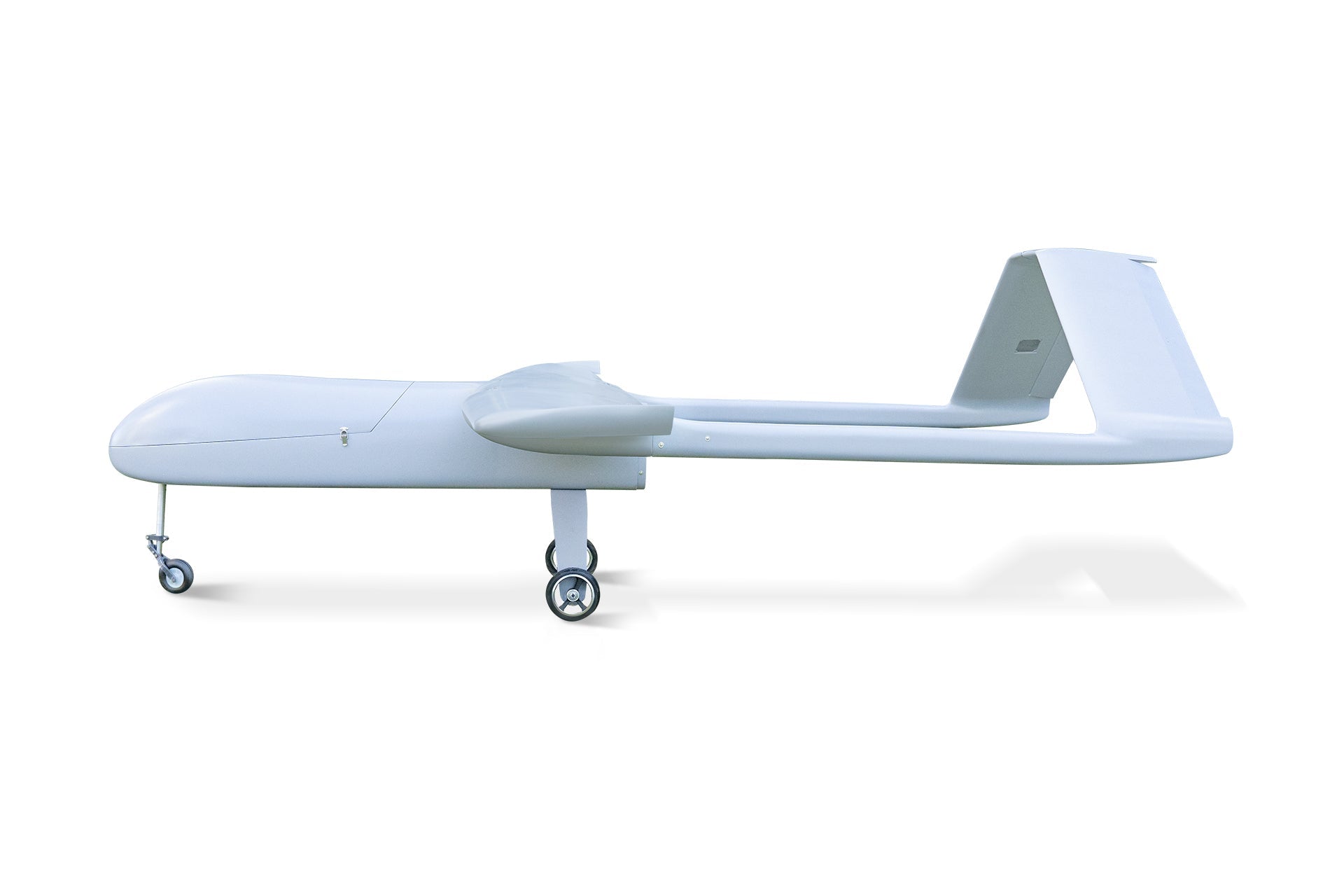

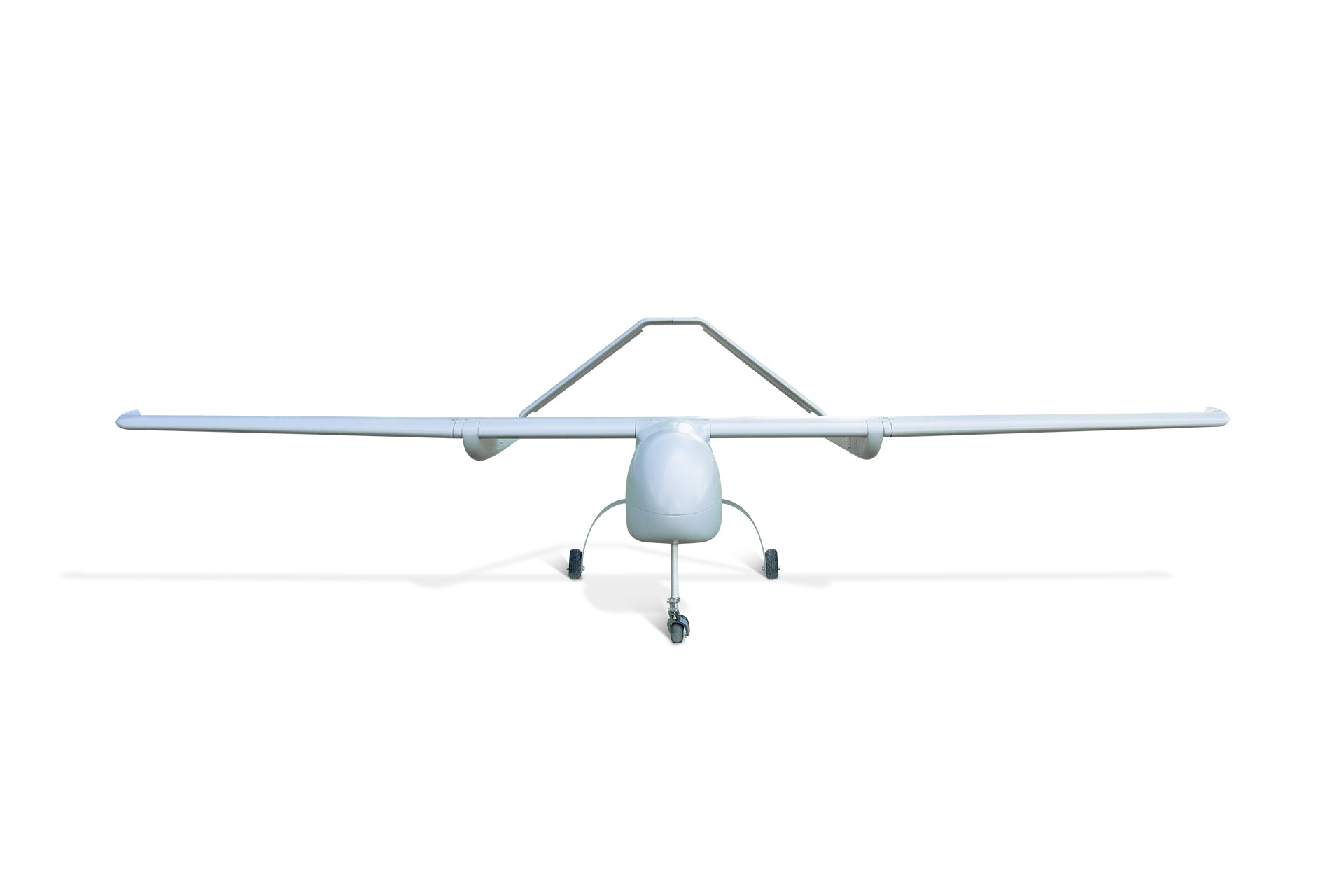

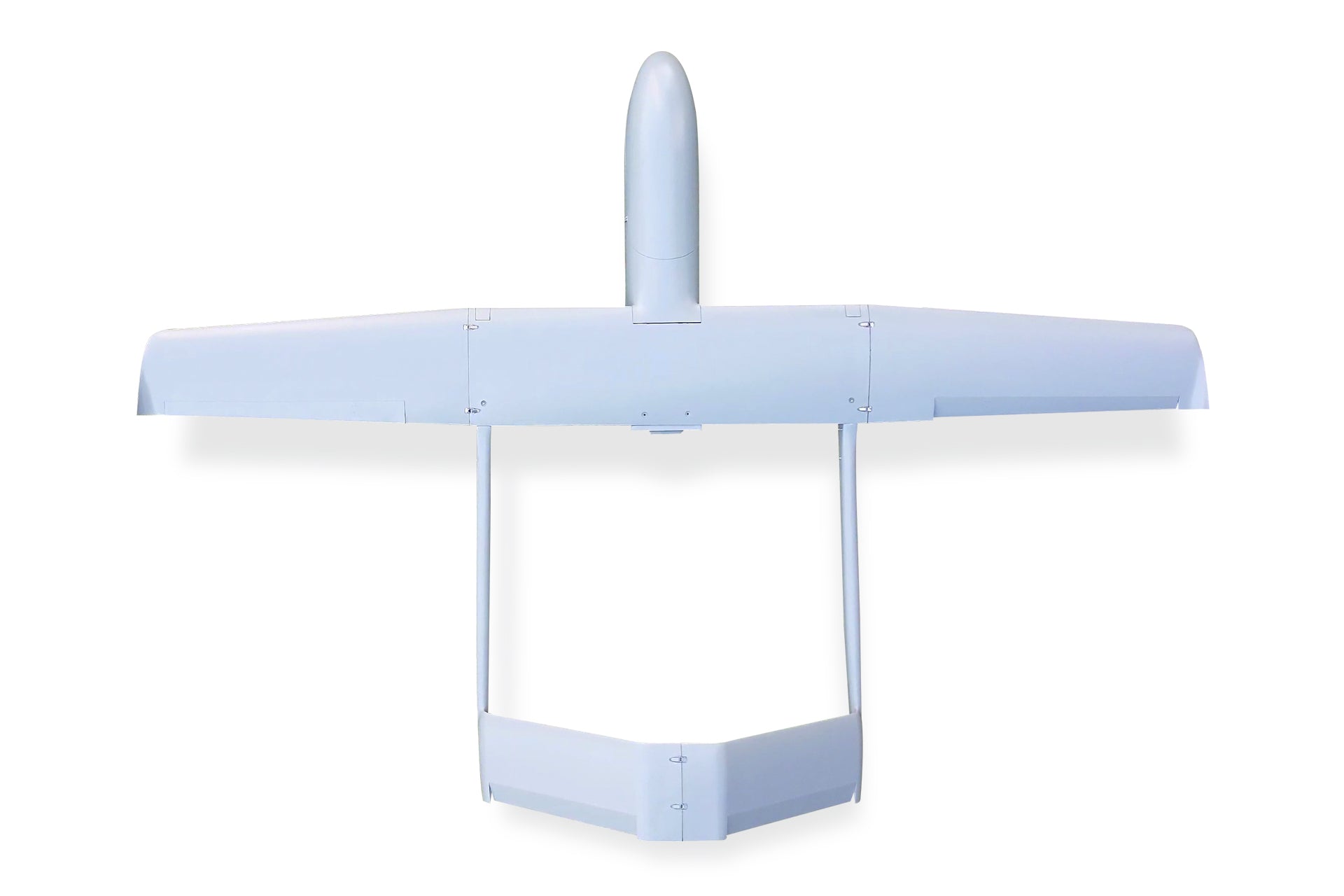

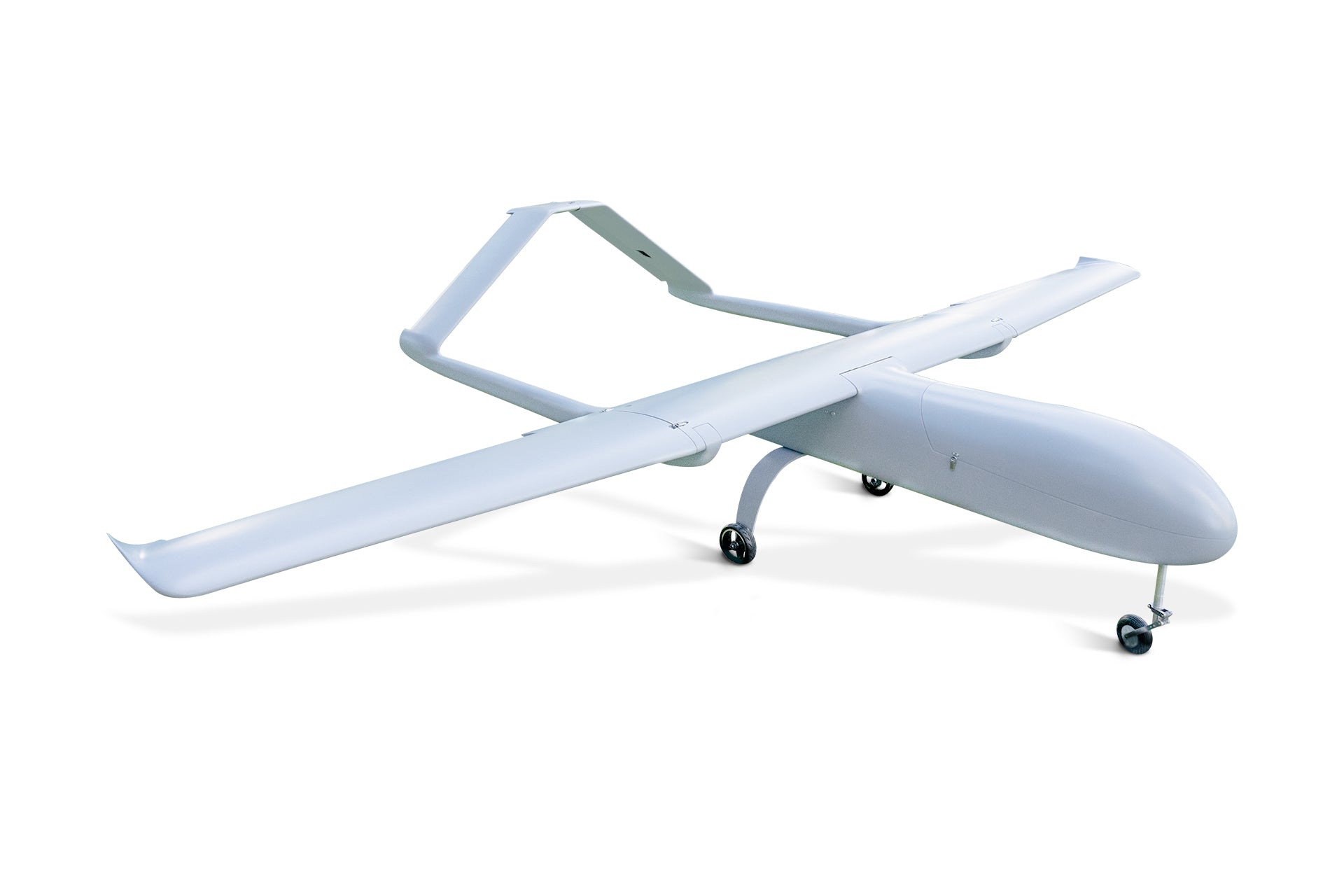

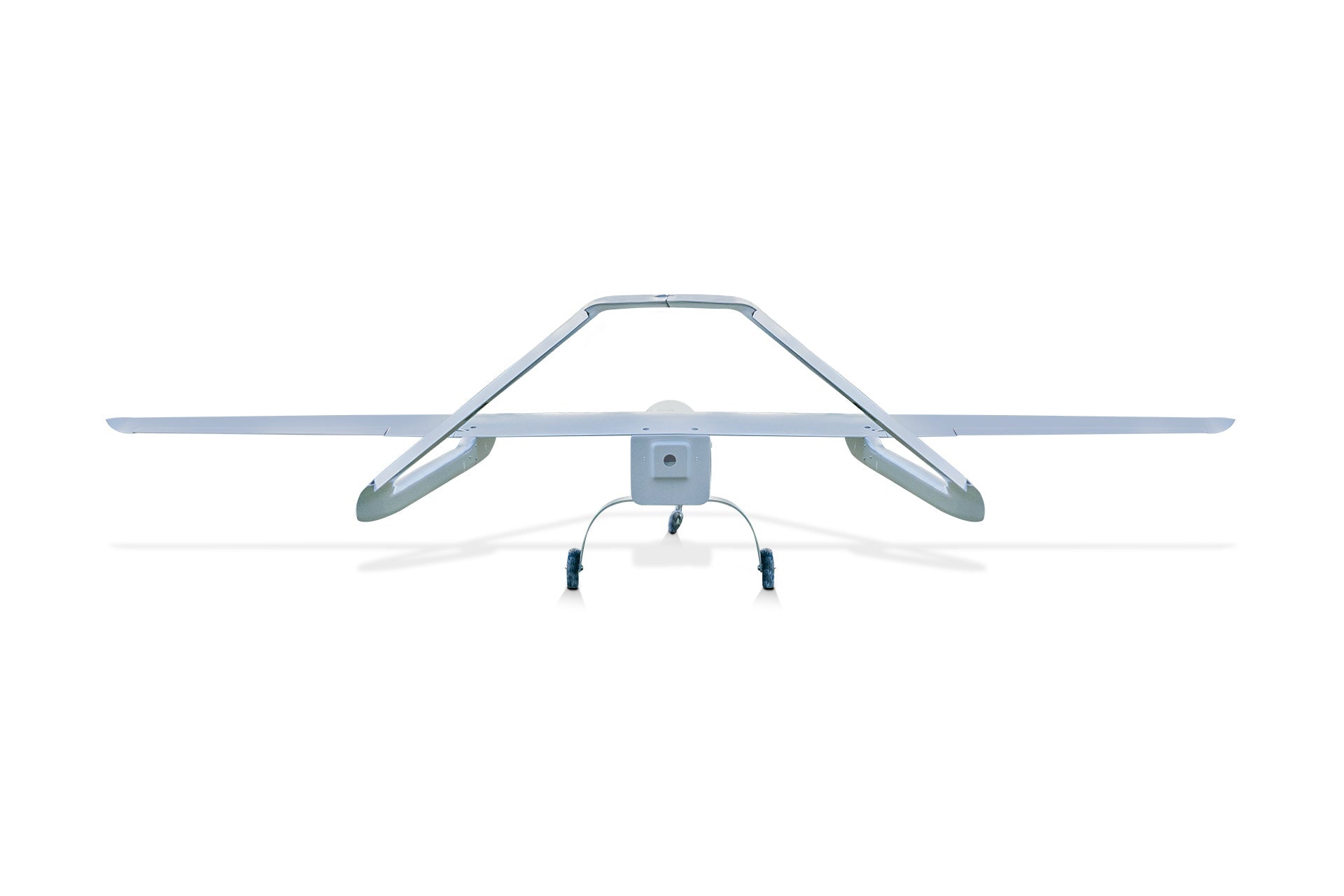

The new Skyeye 3600 UAV platform is a long-endurance drone platform built from lightweight carbon fiber, offering up to 4.5 hours of flight time and a maximum payload of 8 kilograms. With a spacious cabin and an 11.5-liter fuel tank, it accommodates a 50-100cc engine and can carry larger payloads over longer distances. The upgraded structure ensures quick takeoffs and landings while optimizing performance, ideal for professional missions like surveillance and mapping.

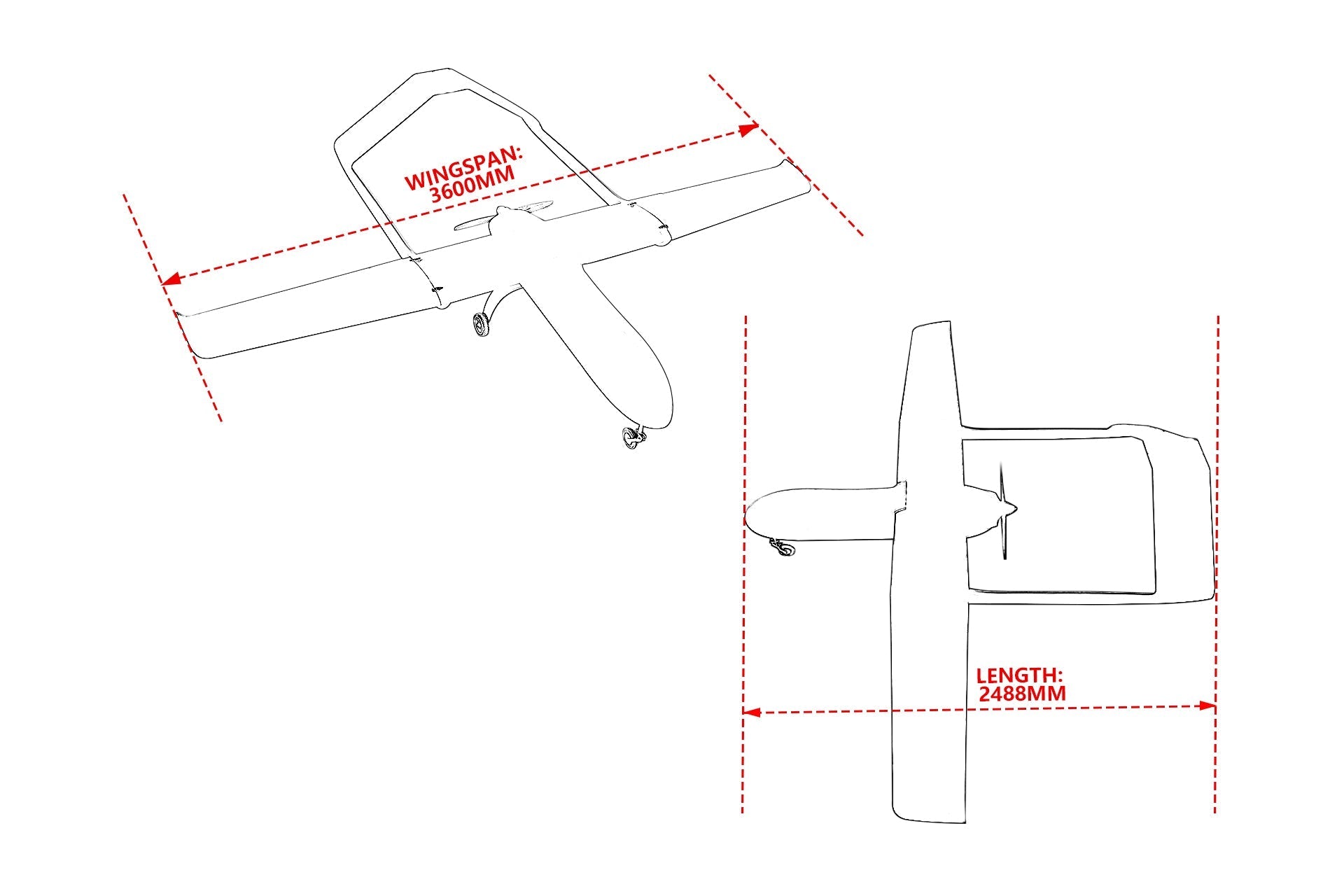

| PARAMETER | Wingspan | 3600mm |
| Length | 2488mm | |
| Material | Full carbon fiber | |
| Wing Area | 133 dm2 | |
| Internal cabin | 560x260x270mm | |
| Carbon Fiber Construction | Lightweight yet durable | |
| Efficient Operation | Takes off within 50 meters at full load | |
| Weight and Payload | Max. Payload | 8 kg |
| Empty Weight | 11.5 kg | |
| Fuel tank | 11.5 liters | |
| Max.Takeoff Weight | 30 kg | |
| Flight Characteristics | Max. Flight Time | 4.5 hours |
| Minimum Speed | 45 km/h | |
| Long Flight Time | 4.5 hours | |
| Packaging Information | Packaging | 143*39*34cm |
| Packing weight | 13kg |
It is upgraded by SKYEYE UAV 3600
The Skyeye 3600 is also available in Skyeye 3600 VTOL version.
| SKYEYE S360 3600MM FIXED WING | ||||
| Name | Specification | KIT | PNP(M) | PNP(E) |
| Flying platform | S360 Outer wing | 2 | 2 | 2 |
| S360 Center wing | 1 | 1 | 1 | |
| S360 Main body | 1 | 1 | 1 | |
| S360 Stay bar | 2 | 2 | 2 | |
| S360 Undercarriage | 1 | 1 | 1 | |
| S360 Skateboard | 1 | 1 | 1 | |
| S360 Plain tail | 2 | 2 | 2 | |
| S360 hatchcover | 1 | 1 | 1 | |
| S360 Fuel tank | 1 | 1 | 1 | |
| S360 Engine hood | 1 | 1 | 1 | |
| Power system(Motor) | Dualsky GA6000.8 180RPM/V Brushless Motor | 1 | ||
| Dualsky XC13036HV 130A High Voltage ESC | 1 | |||
| Savox 1256 Servo | 7 | |||
| Sail 24x12 High Power Propeller | 1 | |||
| MT90 UAV Pitot Tube | 1 | |||
| Wire bale | 1 | |||
| Power system(Engine) | DLE60 Engine | 1 | ||
| Savox 1256 | 8 | |||
| Sail 23x9 High Power Propeller | 1 | |||
| MT90 UAV Pitot Tube | 1 | |||
| Wire bale | 1 | |||
Information Updated version:202412311420
Customized aluminum box, contact customer service before customization, product price is an aluminum box price;
The aluminum box is a custom product, the order will be made after payment, and no refund will be accepted.
If the product exceeds the maximum order weight of the system, the logistics cost can consult our customer service staff.
Note:
Production lead time: 7-15 working days (ask customer service about production schedule before ordering)
The shipping time is expected to be another 7~14 days
Prices and freight are for reference only, no stock, orders need to wait for production time.
