| PARAMETER | Wingspan | 6000mm |
| Length | 3500mm | |
| Maximum Width of Fuselage | 375mm | |
| Wing Area | 312 dm2 | |
| Airframe Material | Full carbon fiber | |
| Weight and Payload | Empty Weight | 34.2KG |
| Take-off Weight | 90kg | |
| Payload Capacity | Up to 20kg | |
| Volume of Fuel Tank | 28Liters | |
| Equipment cabin size | 920mm x 340mm x 350mm | |
| Flight Characteristics | Endurance | Over 8 hours (max. 12 hours as per one client’s feedback) |
| Maximum Speed | 36m/s | |
| Cruise Speed | 34m/s | |
| Stalling Speed | 24m/s | |
| Range | 800km | |
| Operating Altitude | 5000m | |
| Packaging Information | Wing section | 190*50*80cm |
| Fuselage section | 190*50*95cm |

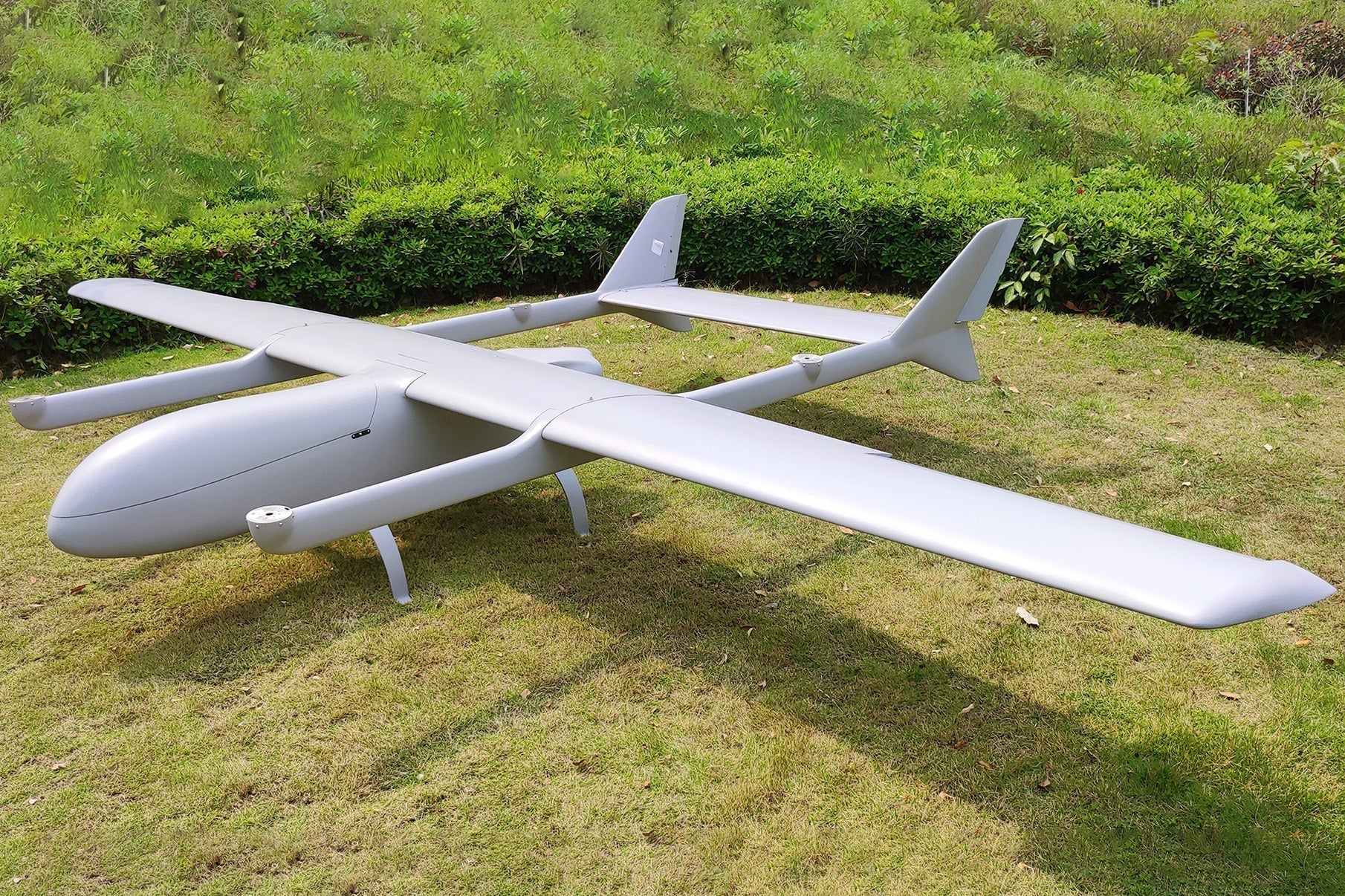

| Skyeye Wingspan 6000MM | |||
| Name | Specification | KIT | PNP |
| Flying platform | SV600 Outer wing | 2 | 2 |
| SV600 Center wing | 1 | 1 | |
| SV600 Main body | 1 | 1 | |
| SV600 undercarriage | 1 | 1 | |
| SV600 Plain tail | 1 | 1 | |
| SV600 Stern stay | 2 | 2 | |
| SV600 Front stay | 2 | 2 | |
| SV600 hatchcover | 1 | 1 | |
| SV600 Fuel tank | 1 | 1 | |
| SV600 Engine hood | 1 | 1 | |
| Power system | DLE 222cc Engine | 1 | |
| T-motor V13L KV65 VTOL Motors | 4 | ||
| T-motor THUNDER 200A 24S ESC | 4 | ||
| Pilot PW-48AH Servo | 2 | ||
| Pilot PW-28AH Servo | 4 | ||
| Tower Pro MG958 Servo | 2 | ||
| Sail 32x12 High Power Propeller | 1 | ||
| T-motor V40*16-Prop-2PCS/PAIR | 2 | ||
| MT90 UAV Pitot Tube | 1 | ||
| Wire bale | 1 | ||
Information Updated version:202412311537
If the product exceeds the maximum order weight of the system, the logistics cost can consult our customer service staff.
We recommend to use 17x 6s 8000mAh or 10000mAh batteries. 4x batteries are connected in series to be used as 24s. A total of 4 sets of batteries supply power to the 4 VTOL motors, and the remaining one battery supplies power to the engine and other electronics.
Note:
Production lead time: 7-15 working days (ask customer service about production schedule before ordering)
The shipping time is expected to be another 7~14 days
Prices and freight are for reference only, no stock, orders need to wait for production time.
